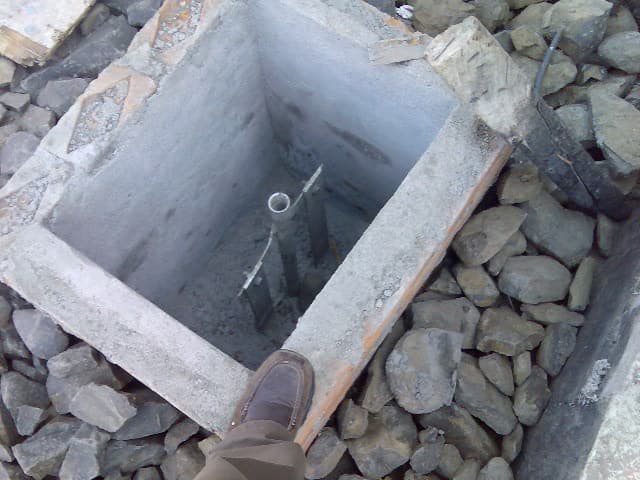

An earth pit provides accessible inspection and connection points for grounding electrodes, facilitating maintenance and resistance testing.

Earth Pit Components

• •Chamber: Concrete or brick construction
• •Cover: CI or concrete lid with identification
• •Electrode: Pipe, rod, or plate connection point
• •Conductor: GI or copper flat to earth grid

Design Features

• •Waterproof construction above water table
• •Drainage provisions in wet areas
• •Clear identification and labeling
• •Accessible location for testing

Maintenance Activities

• •Visual inspection of connections
• •Earth resistance measurement
• •Tightening of bolted connections
• •Soil treatment if resistance increases

Standards

• •IS 3043 for earthing practice
• •IEEE 81 for earth resistance testing
• •Local utility specifications
