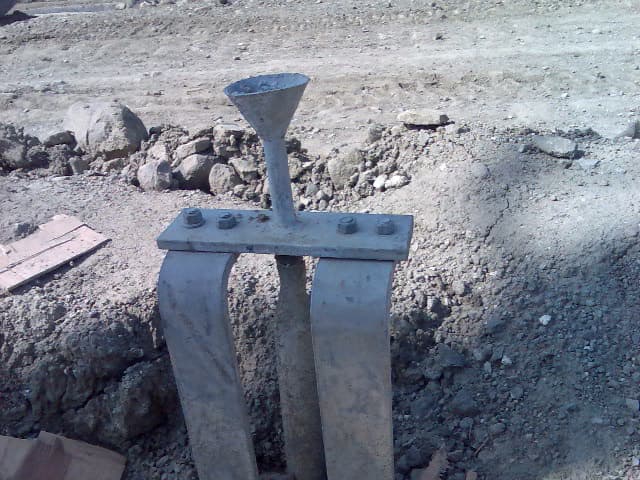

Secondary earth pipes provide redundancy in grounding systems and reduce overall earth resistance through parallel electrode configuration.

Redundancy Benefits

• •Reliability: Backup path if one electrode degrades
• •Lower resistance: Parallel electrodes reduce total resistance
• •Current distribution: Spreads fault current across electrodes
• •Safety margin: Exceeds minimum requirements

Spacing Requirements

• •Minimum 3 meters between parallel electrodes
• •Optimal spacing equals electrode length
• •Grid pattern for large substations

Connection to Earth Grid

• •GI or copper flat conductors
• •Buried connections protected from corrosion
• •Test points at accessible locations
• •Documentation of electrode locations
