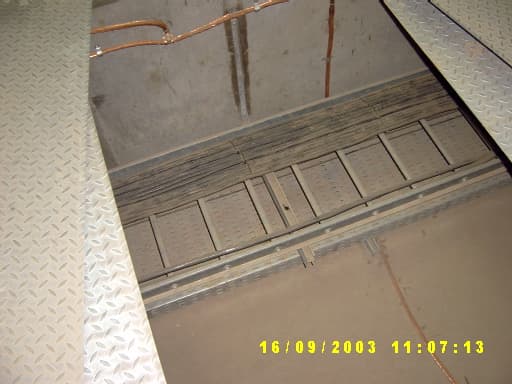

Standardization of cable tray dimensions (width and flange height) is key to efficient plant engineering and inventory control.

Standard Dimensions

• •Widths: 150, 300, 450, 600, 750, 900 mm
• •Rung spacing: 225 mm or 300 mm
• •Side rail heights: 100 mm, 150 mm
• •Length: 3m or 6m standard sections

Benefits

• •Interchangeability of parts
• •Simplified support design
• •Reduced design complexity
