Raised Floor Installation Work
ksvengineering.com
Technical Overview
Raised floor installations in substation control rooms provide organized cable routing and HVAC distribution in the underfloor plenum.
Benefits
- •Cable management: Organized routing under the floor
- •Air distribution: Underfloor HVAC delivery
- •Flexibility: Easy reconfiguration of cable routes
- •Accessibility: Lift-out panels for maintenance
Components
- •Pedestals: Adjustable height supports
- •Stringers: Connecting beams between pedestals
- •Floor panels: Load-bearing tiles (concrete, steel, or composite)
- •Ramps: Access transitions from normal floor level
Design Standards
- •Load rating per CISCA guidelines
- •Fire rating for control room applications
- •Grounding of metallic components
- •Static dissipation for electronic equipment
Image ID: 33

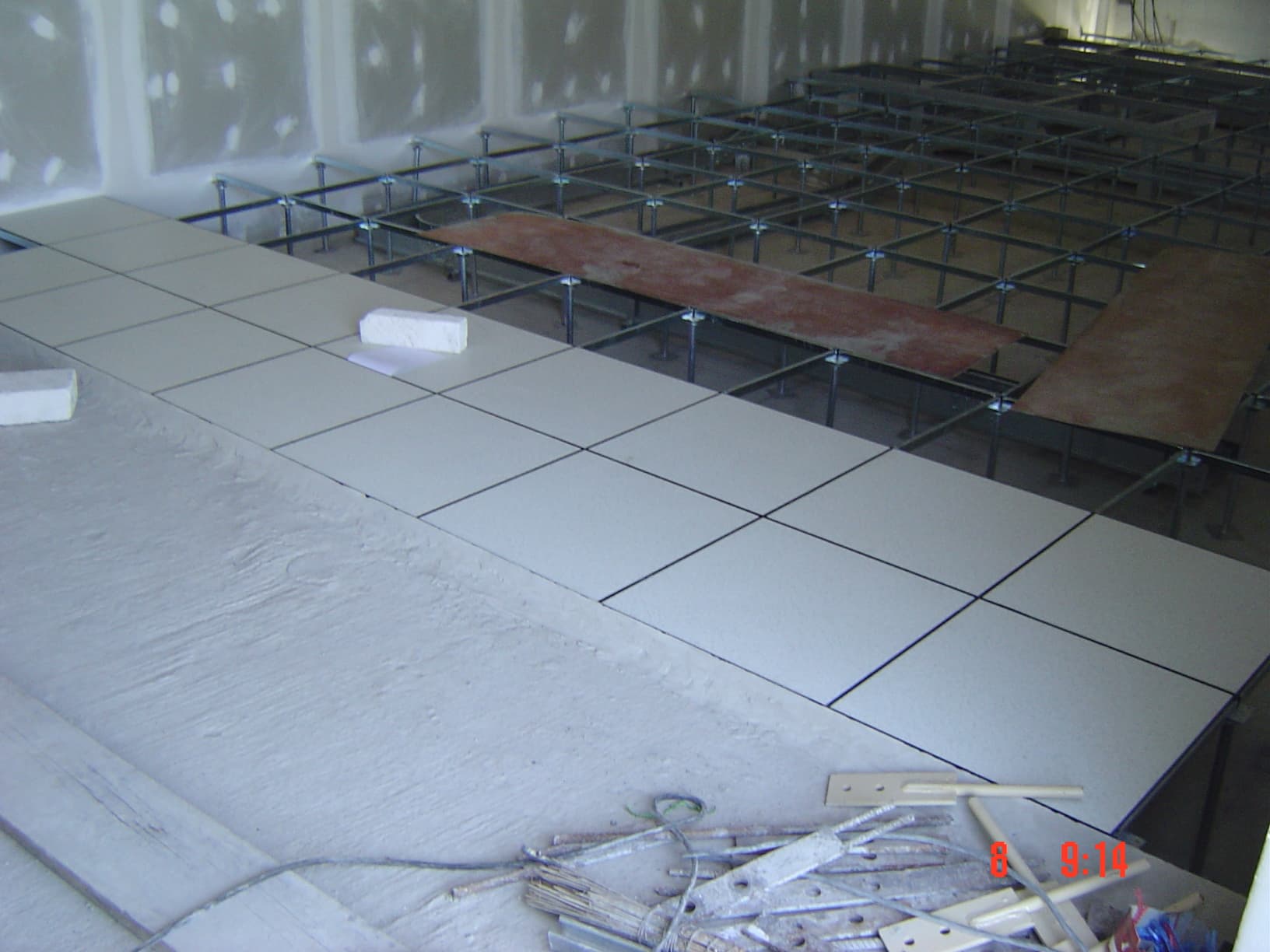

Raised Floor Installation Work
Raised floor installation work in progress, creating an underfloor plenum for efficient cable management and air conditioning in control rooms.
