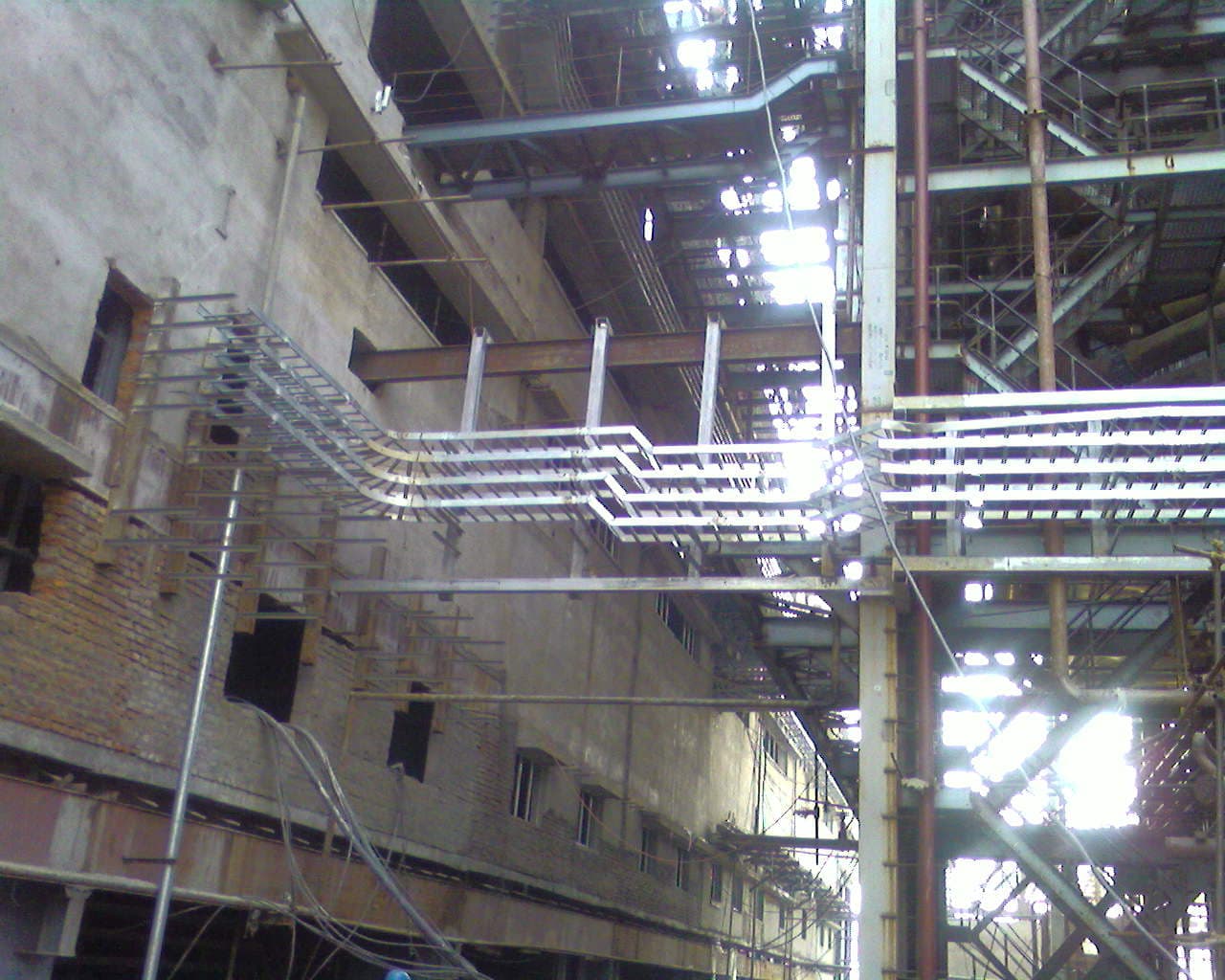

Multi-tier cable tray support systems maximize cable routing capacity in space-constrained environments by stacking trays vertically.

Configuration Features

• •Multiple tiers: 2 to 6 levels depending on requirements
• •Vertical spacing: 300-500mm between tiers
• •Load distribution: Engineered for cumulative cable weight
• •Cable segregation: Power, control, and communication separation

Structural Design

• •Pre-fabricated modular frames
• •Hot-dip galvanized steel construction
• •Bolted or welded base connections
• •Seismic bracing where required

Installation Advantages

• •Reduced floor space requirement
• •Organized cable segregation
• •Easy future expansion
• •Simplified maintenance access

Standards

• •NEMA VE 1 for cable tray systems
• •IEEE 525 for substation cables
• •IEC 61537 for cable management
